Infrared Sensor Automatic Liquid Foaming Soap Dispenser With Digital Accurate And Fast Measurement Of Temperature
Instructions
1. There are two power supply modes for this product, which supported by 4AA batteries or 5V DC power supply.
2. Switch the power bitton to ON, the power light is on, ans the display will show 000, whenthe forehead or wrist is 0-5cm away from the infrared sensor or the product, the result will be showed on the display and also reported by voice, the testing indicator light will light up the corresponding color simultaneously.
3. When the body temperature is nmal at 32-37.5 ℃, the display shows the current measured temperature and the voice prompts that the current temperature is normal with the green light of the test indicator lighting up.
4.When the body temperature is abnormal at 37.6-28.1 ℃, the display shows the current measured temperature and the voice prompt that the current temperature is too hight with the yellow light of the test result indicator lighting up.
5.When the body temperature is in an abnormal state between 38.2 ℃ -42.9 ℃, the display shows that the current measured temperature and voice prompts taht the current body temperature is too high with the red light of the test result indicator lighting up.
6.When the measured temperature is lower than 34℃, the display shows low with the voice prompt the current measured temperature.
7. When the measured tempurature is higher 42.9 ℃, the display shows high, and the voice prompt re-measure.
8. When the measuring until is select as ℉, the temperature taht over 100 ℉ is only display as an integer. Meanwhile, only test result is reported by voice, actural temperature will not be reported .
9. When the language is selected as English, only test result is reported by voice, actual temperature will not be reported.
10.After the body temperature detection is completed, place your hand at the bottom liquid outle within 5 CM. After the liquid sensor detects the object, it will automatically flow out the hand sanitiser to the hand for disinfection and sterilization. There are 3 level for liquid output. Time of liquid output: about 1.5s in L1, about 2s is L2, about 2.5s in L3.
11. When there is no human body detecting temperature for more than 15 seconds, the system will enter the standby more intelligently, and the display shows 000. When the infrared sensor senses that human body, the system will automatically wake up and enter the temperature measurement mode.
Product features
- Using high - precision infrared sensor, stable and reliable performance.
- Automatic body temperature detection with automatic washing -free hands sanitiser integrated, which makes disinfection more convenient.
- Strong environmental temperature adaptability, could be used normally in complex enviroments
- Large-size digital display, which is clear and soft.
- Two temperature units: Celsius and Fahrenheit.
- With both Chinese and English language, could be used in most regions.
- Intelligent power saving and automatic wake-up function.
Technical parameters
| Product name | Infrared Sensor Automatic Liquid Foaming Soap Dispenser With Digital Accurate And Fast Measurement Of Temperature |
| Product model | 001 |
| Product size | 128*70*300mm |
| Product material | ABS+PC |
| Maximum power | 3w |
| Power supply | 4AA batteries or DC 5V 2.1A |
| Product function | detect body temperature and disinfect hands by senor-supported sanitizer |
| Body temperature display | digital dipslay and voice broadcast |
| Measurement method | infrared sensor |
| Measuring distance | 1-5cm |
| Measuring rang | body temperature (32-42.9℃, 89.6-109.2℉) |
| Allow error | ±0.2 ℃ |
| Measuring time | 2 seconds |
| Filling bottle capacity | 300Ml |
| Liquid type | Wshing -free hands sanitizer, common hands sanitiser |
| Dischange method | infrared senor |
| Woring environment | 10℃-35℃(50℉-95℉), humidity<85% |
| Storage enviroment | -20℃-55℃(-4℉-131℉)humidity<85% |
| Temperature unit | Celsius/Fahrenheit |
| Weight | 670g |
| | |
Support Installable

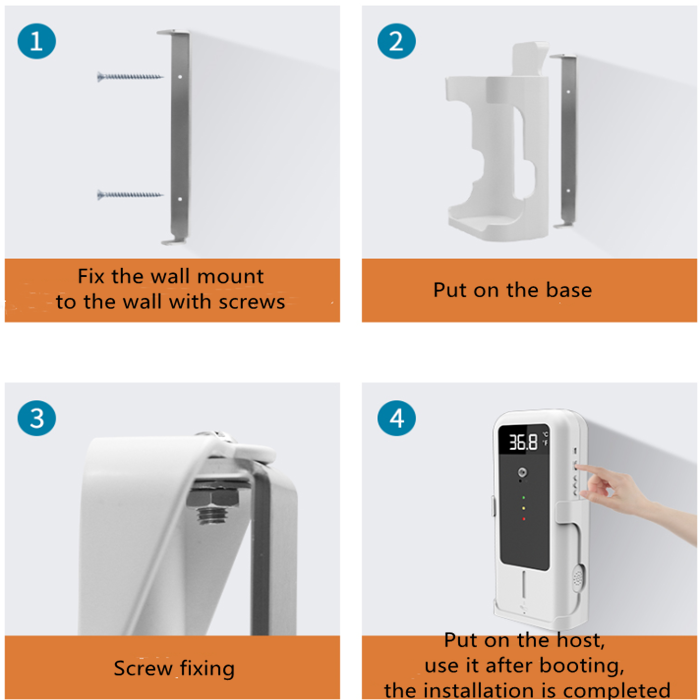

Wall Mounting Installable
Liquid replacement procedure
